We commitment to sustainability of eco-friendly acoustic panels emit low VOC emissions and adhere to environmentally
responsible production metholds .
This ensures that you are not only investing in high-performance acoustic panels but also supporting eco-conscious practices .
Our microperforated wood panels deliver a perfect balance of sound control and durability ,
offering lasting value for commercial spaces .

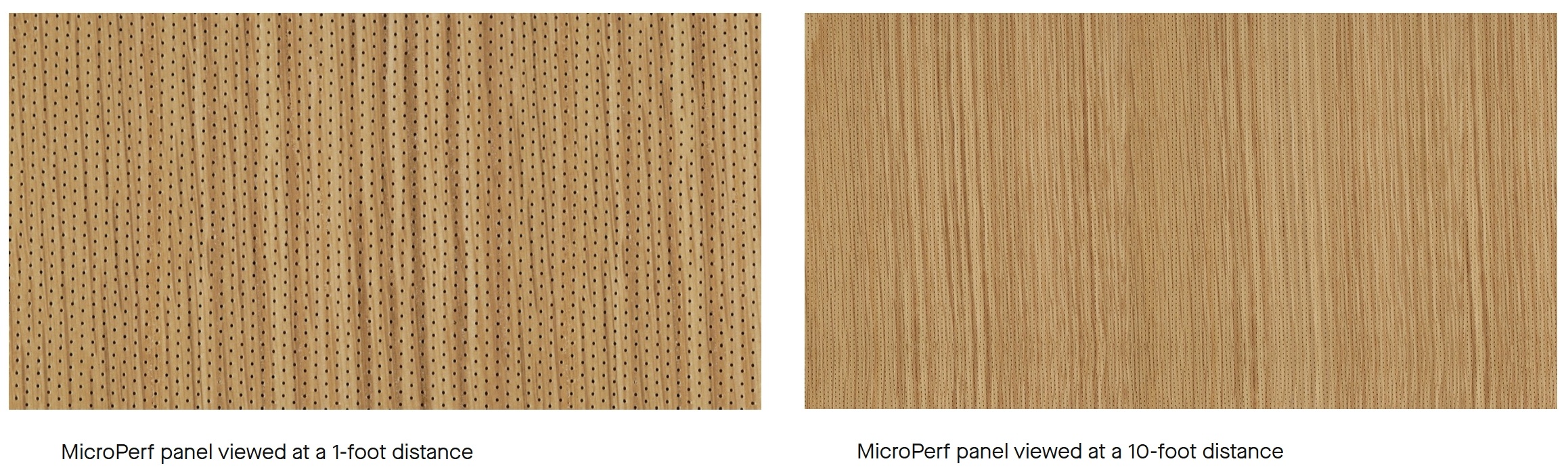

Micro perforated acoustic panel with high sound absorption without it being visible !
Micro is suitable for almost all surfaces, but not for outdoor applications .

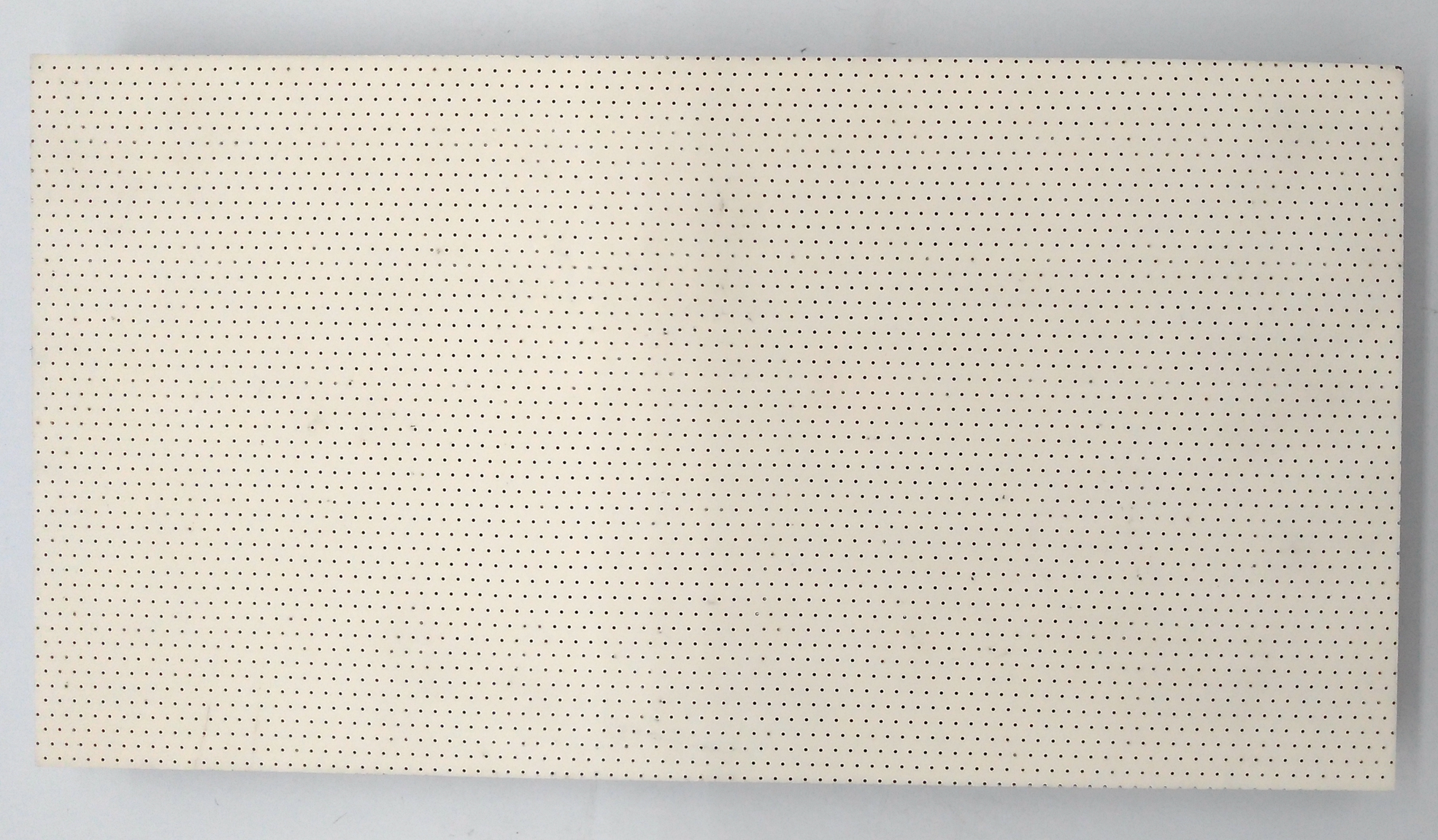

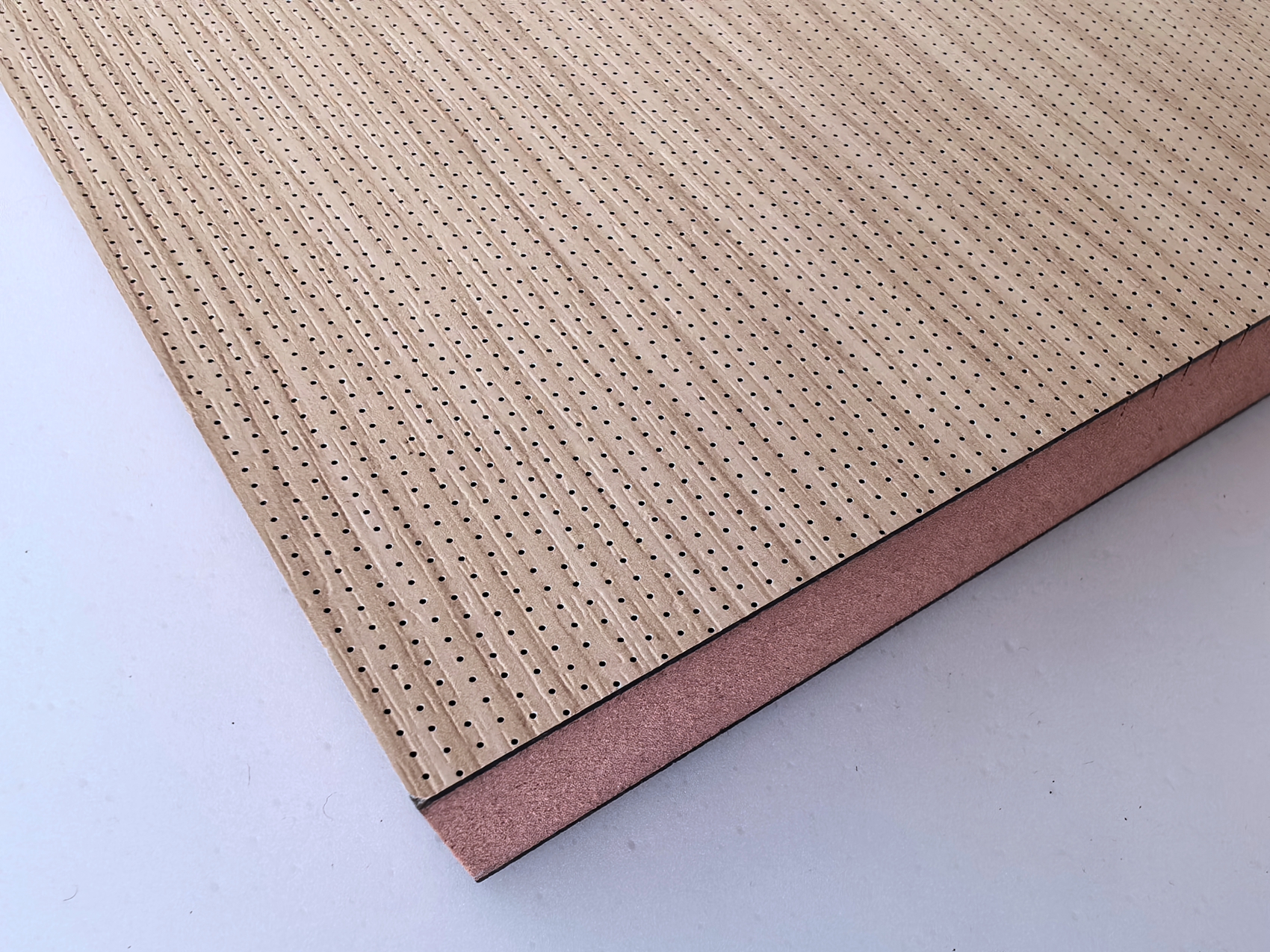

Our wooden micro perforated acoustic panel is made up of a series of perforations .
Each panel has a machined groove joint for either a seamless or gap joinery .

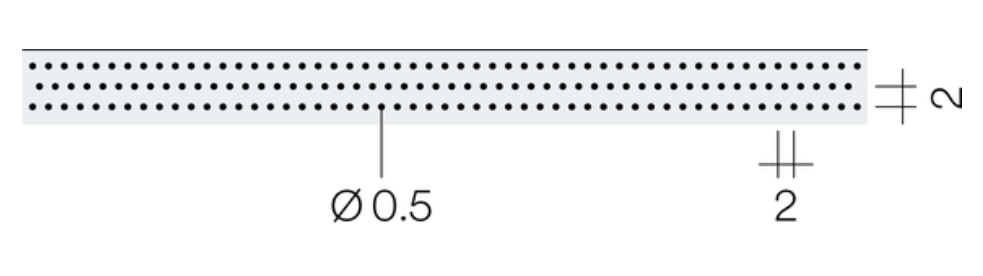

Micro perforated come in 3 standard patterns :
① 1.8/1.8/0.5mm ② 2/2/0.5mm ③ 3/3/0.5mm
Advantage of micro perforated acoustic panel :
-
The absolutely top product in our range
-
ideal for all materials and surfaces
-
Almost invisible acoustic material with high absorption
-
Very aesthetic and functional
-
Up to 600'000 holes every m² possible
-
Mildew and termite resistant
| Pattern | 1.8/1.8/0.5mm,2/2/0.5mm,3/3/0.5mm |
| Finish | Real veneer / laminate / melamine |
| Core | Charcoal board / MDF |
| Fleece | Soundtex / Freudenberg |
| Standard panel size | 1200*600mm / 2400*1200mm / TBD |
| Standard core thick | 15mm / 18mm / TBD |
| Hole option | Square / Rhombic |
| Edge option | Type A / Type C |
| Wood grain | Along length / Along width |
Hole Option :

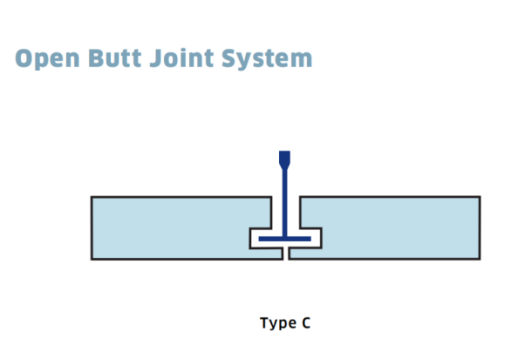

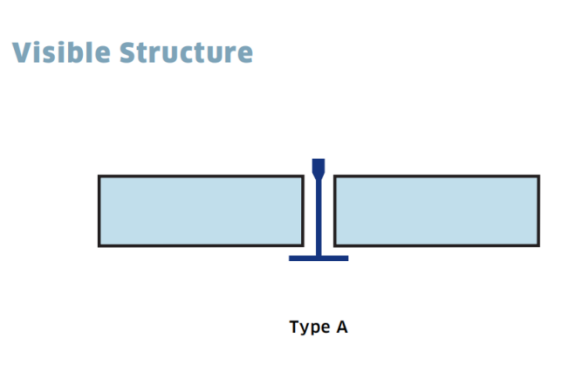

Edge Option :

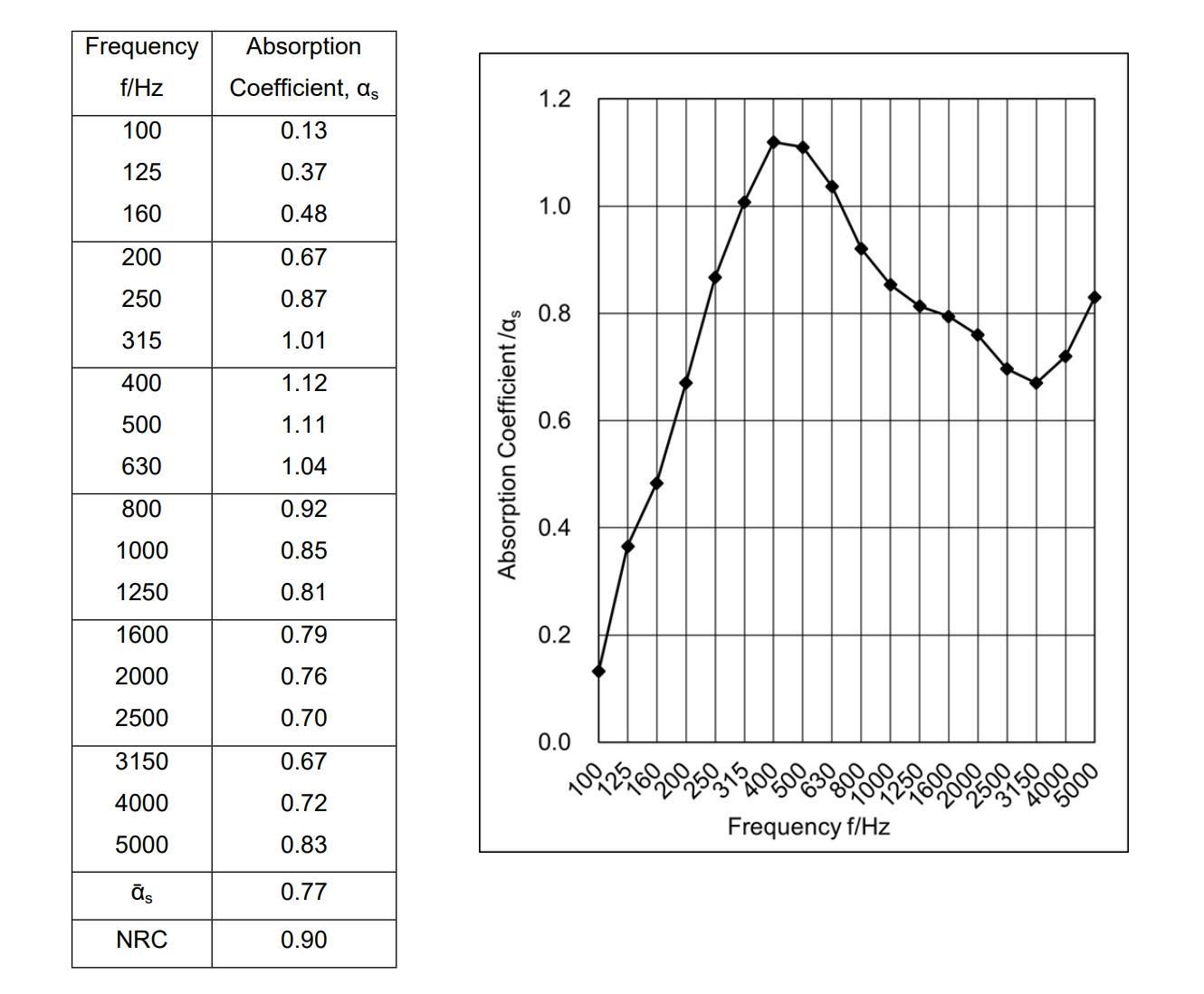

Sound absorption data :
NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .
Indoor air quality :

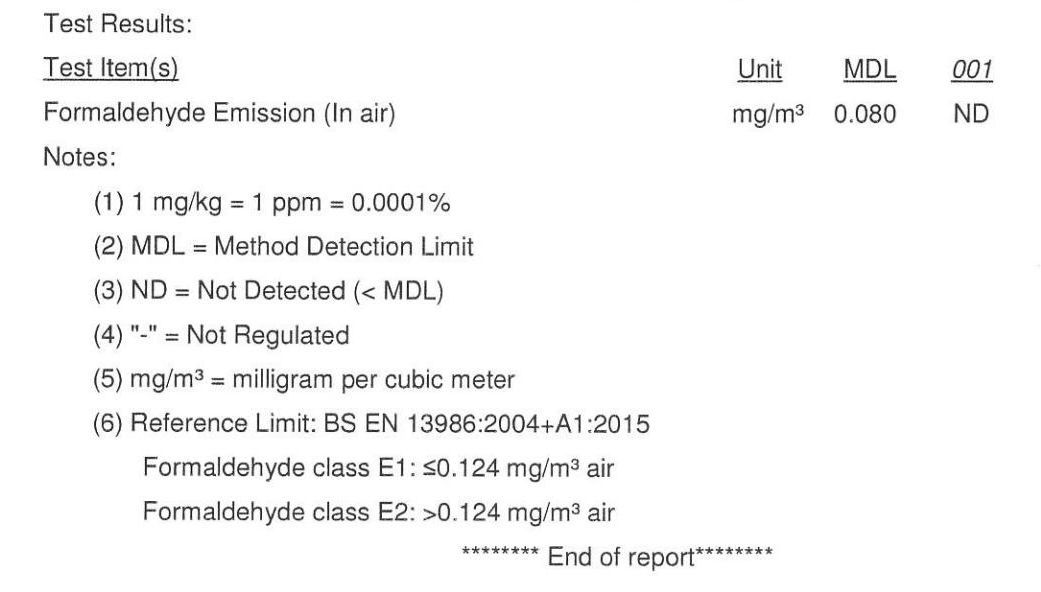

Eco-Friendly Test = E1 with reference to EN 717-1:2004 , analysis was performed by UV-Vis .

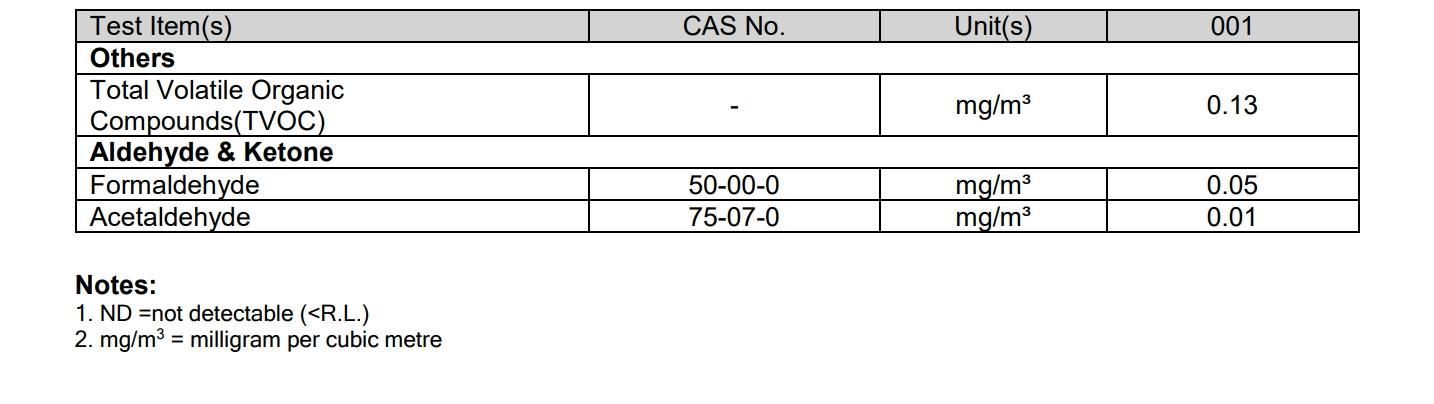

TVOC Test :
With reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

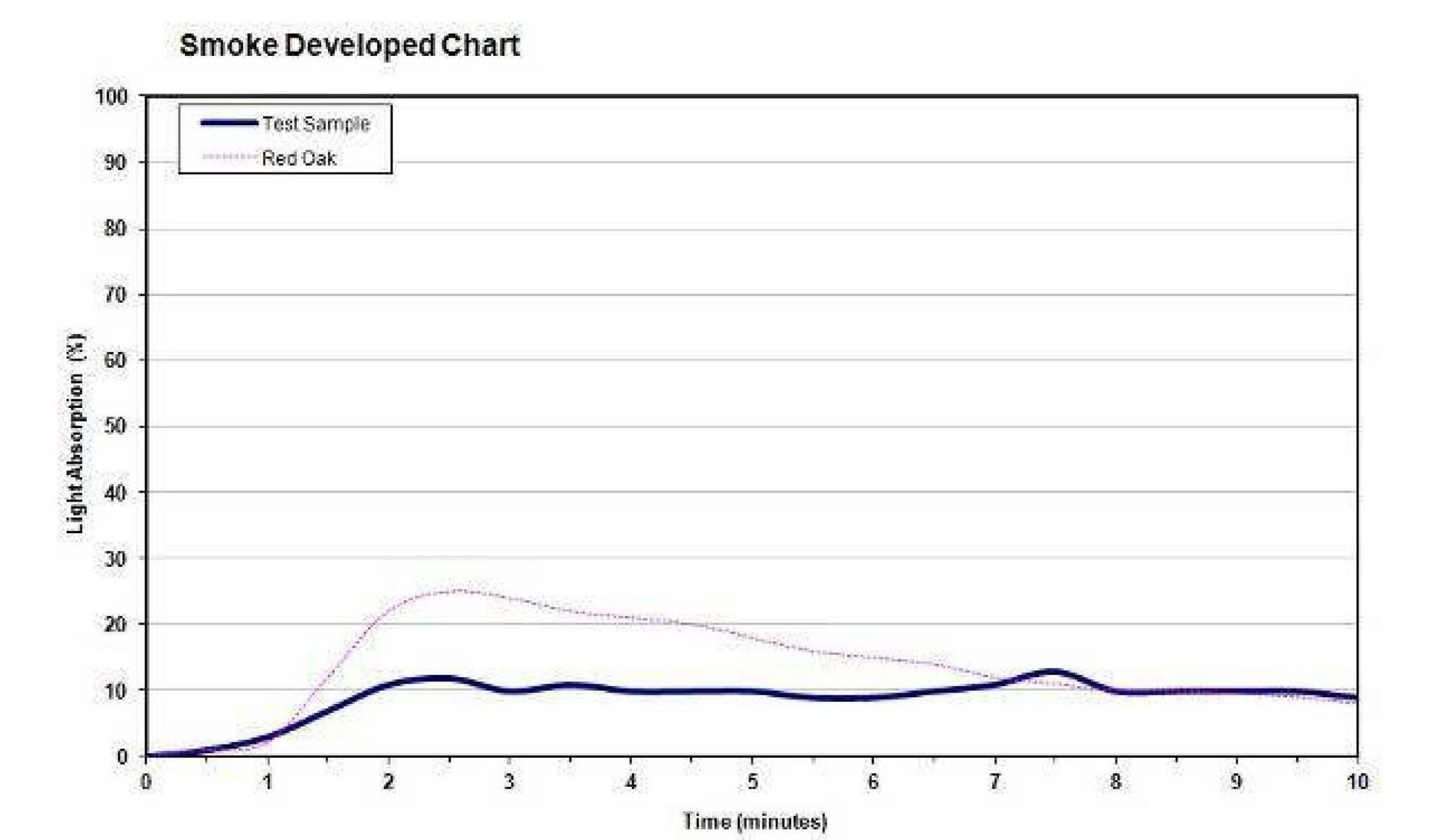

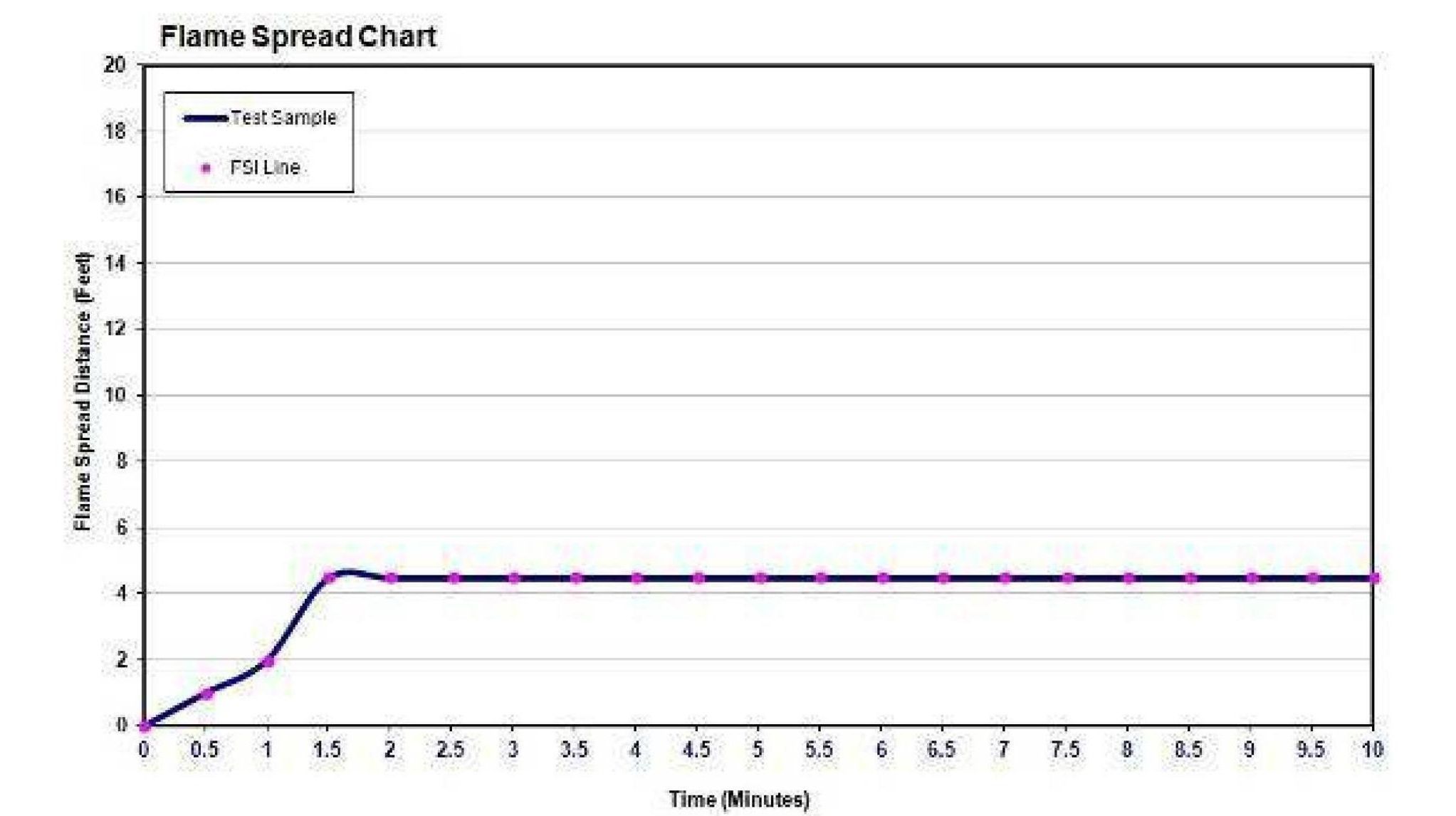

Fireproof performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .
Finish Option :
Available in 16 solid colors and 32 wood grain laminate color .
The specific color selection is selected from the color card .

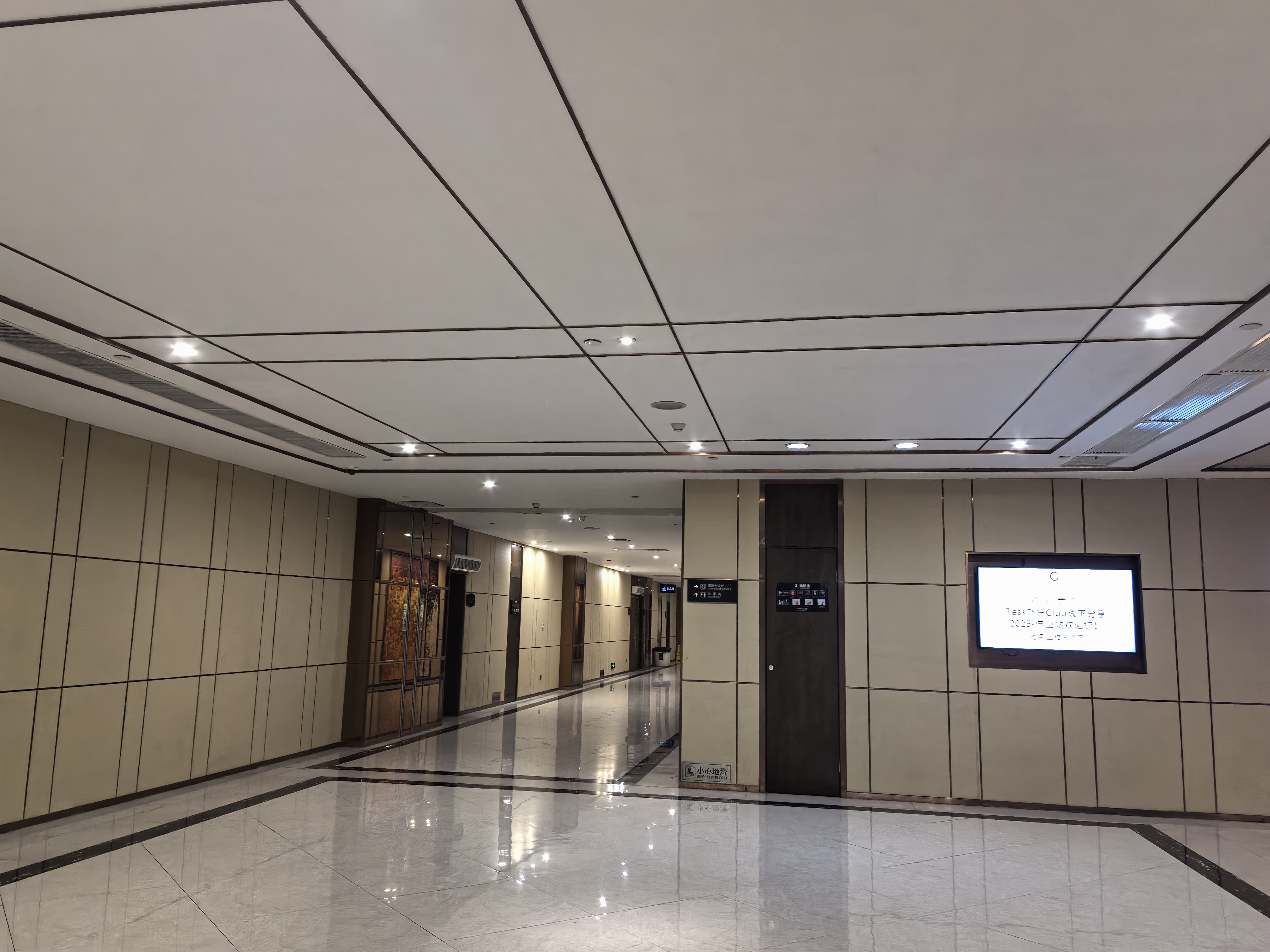

Commerical job reference :
For more information, please feel free to contact us .
